Dry Drill Set Brackets by Sturdi-Wall are designed for post-frame buildings where posts are anchored to existing or newly poured concrete. These brackets offer a reliable, engineered solution that improves structural strength, simplifies installation and helps protect posts from ground contact, making them ideal for a wide range of building applications.
Why Dry Drill Set Brackets Sturdi-Wall
Built to perform — here's what sets it apart.
Keeps posts out of the ground
Elevates the wood column above grade on a steel bracket — eliminating the ground-contact moisture that rots buried posts, the leading cause of post-frame foundation failure.
ICC-ES® certified
The only ICC-ES-certified post-frame anchor brackets — compliant with the 2015 & 2018 IBC® and IRC® (ESR-4239), including High-Velocity Hurricane Zone approval for smoother permitting.
Built to resist corrosion
American-made ¼″ steel with a super-durable polyester powder coat tested beyond 2,000 salt-spray hours; hot-dip galvanized is available for highly corrosive or coastal sites.
Strong, fast drill-set install
Bolts to already-poured, cured concrete with wedge anchors — no wet-set timing to manage, and it avoids costly concrete-placement errors.
Specifications
Steel
¼″ plate
Code
ICC-ES® (ESR-4239)
Warranty
Lifetime
Install
Drill-set into cured concrete (wedge anchors)
Finish
Super-durable powder coat — 2,000+ hr salt-spray; galvanized available
Construction
American-made steel, robotically welded
Fits
4x6, 6x6, 8x8 posts & 3–5 ply 6″/8″ columns
Frequently asked questions

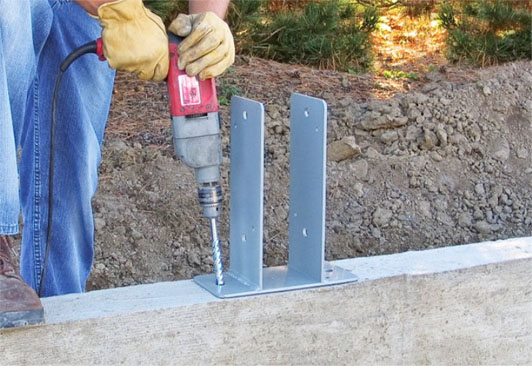

It bolts to concrete that’s already poured and cured, using a hammer drill and wedge anchors — so you don’t have to set brackets while the concrete is still wet. That removes wet-set placement errors. Setting in fresh concrete instead? Ask us about the wet-set Sturdi-Wall® Plus.

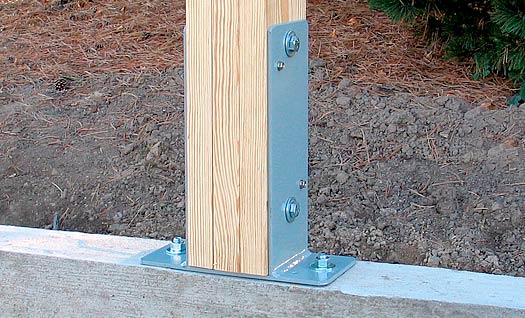

It holds the wood column on a steel bracket above grade, out of direct soil contact. Ground moisture is what rots buried posts, so keeping the wood up and dry is what gives the foundation its long life.
Solid 4x6, 6x6 and 8x8 posts, plus 3-, 4- and 5-ply 6″ and 8″ nail-laminated or glulam columns, and 6″ and 8″ universal brackets. Standard, OT and GL versions match nailed, mechanically-fastened, or planed-and-glued columns — we’ll match the right one to your build.
Yes — it’s ¼″ American steel, robotically welded, and carries an ICC-ES evaluation report (ESR-4239) for the 2015 and 2018 IBC and IRC, with High-Velocity Hurricane Zone compliance. We’ll spec the right model and anchor layout for your loads.
Sturdi-Wall® brackets are backed by a lifetime warranty.
