Sq ft
3351
beds
4
baths
3
1/2 baths
1
stories
1.5
cars
1
width
40 Ft
depth
84 Ft
Plans From $1,250.00
Floorplan Drawings

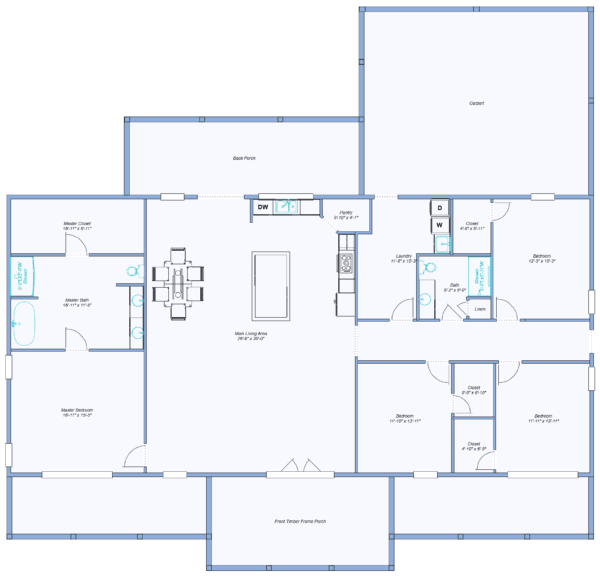

Main Floor Drawing - Click to view in full screen
Second Floor Plan - Click to view in full screen
Features
Bedrooms:
Master on Main Floor
garage:
Rear Entry
garage features:
One Car, Floor Drain
kitchen:
Pantry, Open Floor Plan
laundry:
Laundry on Main Floor
outdoor:
Front & Rear Porches
rooms:
Loft
details
total heated area:
3351
-- first floor:
1500 Sq Ft
-- second floor
350 Sq Ft
-- garage:
240 Sq Ft
floors:
1.5
bedrooms:
4
bathrooms:
3
half baths:
1
garages:
1
width:
40 Ft
depth:
84 Ft
Height:
22 Ft
Foundation:
Concrete Slab
main roof pitch:
4:12
exterior framing:
2x6 wood
ceilings
first floor:
9 Ft
second floor:
8 Ft
Frequently asked questions
MODIFY THIS PLAN WITH 4 EASY STEPS...
- Contact Us About Your Needs
Using the form below, send a description of the changes you'd like to make. You may optionally include marked up drawings with your written request. Once received, we will send you a confirmation email letting you know we are working on a quote. - Review Your No-Obligation Quote
Our designers will review your request and provide a custom quote within 3 business days. The quote includes the updated price for the edits, and the time frame needed to complete them. - Place Your Order
Once you approve the quote and submit payment, we will get to work! (Unfortunately, due to high volume, we are unable to provide sketches of the plans before you actually place your order.) - Receive Your Updated Plans!
Custom plans can typically take 3-4 weeks, but do vary depending on our current volume and complexity of the requested changes. The expected time frame to complete your plans will be specified in the quote.
More questions? We can help!
Call us at 931-296-2777 to talk to a specialist who can help you with your request.
Fill out the form below to receive your free no-obligation quote:
We have partnered with StartBuild to eliminate the guesswork of estimating construction costs. Their state of the art estimator is based on years of experience in the industry, and is continuously updated with current costs for materials and labor.
- It's Accurate & Up to date.
StartBuild's estimator accounts for the house plan, location, and building materials you choose, with current market costs for labor and materials.
- It's Fast & Flexible.
Receive a personal estimate in two business days or less, with 30 days to change your options.
- It's Inexpensive.
A personal estimate costs just $29.95 per plan.
More questions? We can help!
Call us at 931-296-2777 to talk to a specialist who can help you with your request.
Fill out the form below to receive your free no-obligation quote:
WHAT'S INCLUDED IN THESE PLANS?
- Title Sheet
- 4 Detailed Elevations, fully dimensioned and noted
- Floor Plans
- Roof Plan
- Typical Wall Section or Cross Section
- Foundation Plan & Details
- General Notes Page
- Electrical Plan for each floor
More questions? We can help!
Call us at 931-296-2777 to talk to a specialist who can help you with your request.
about the Wellington Barndominium Plan 119104

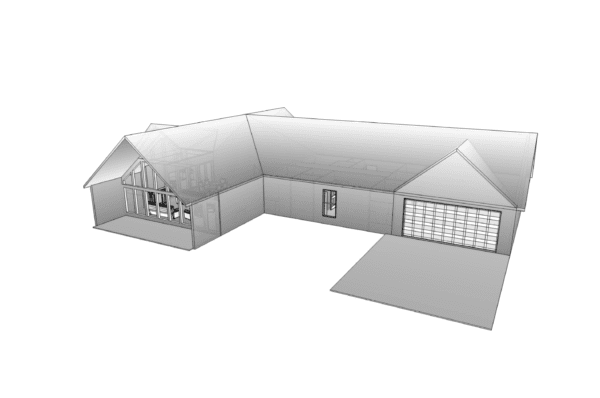

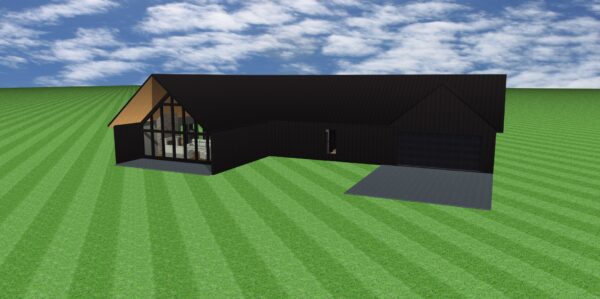

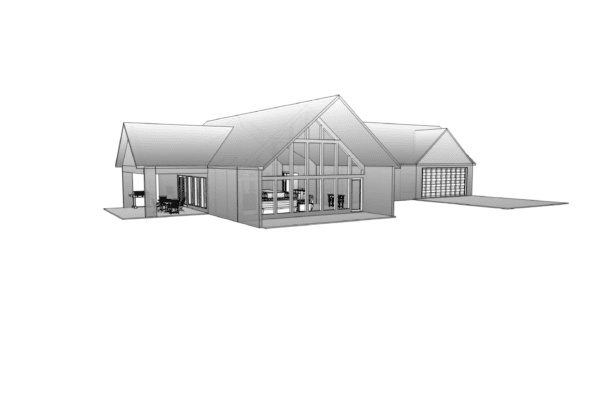

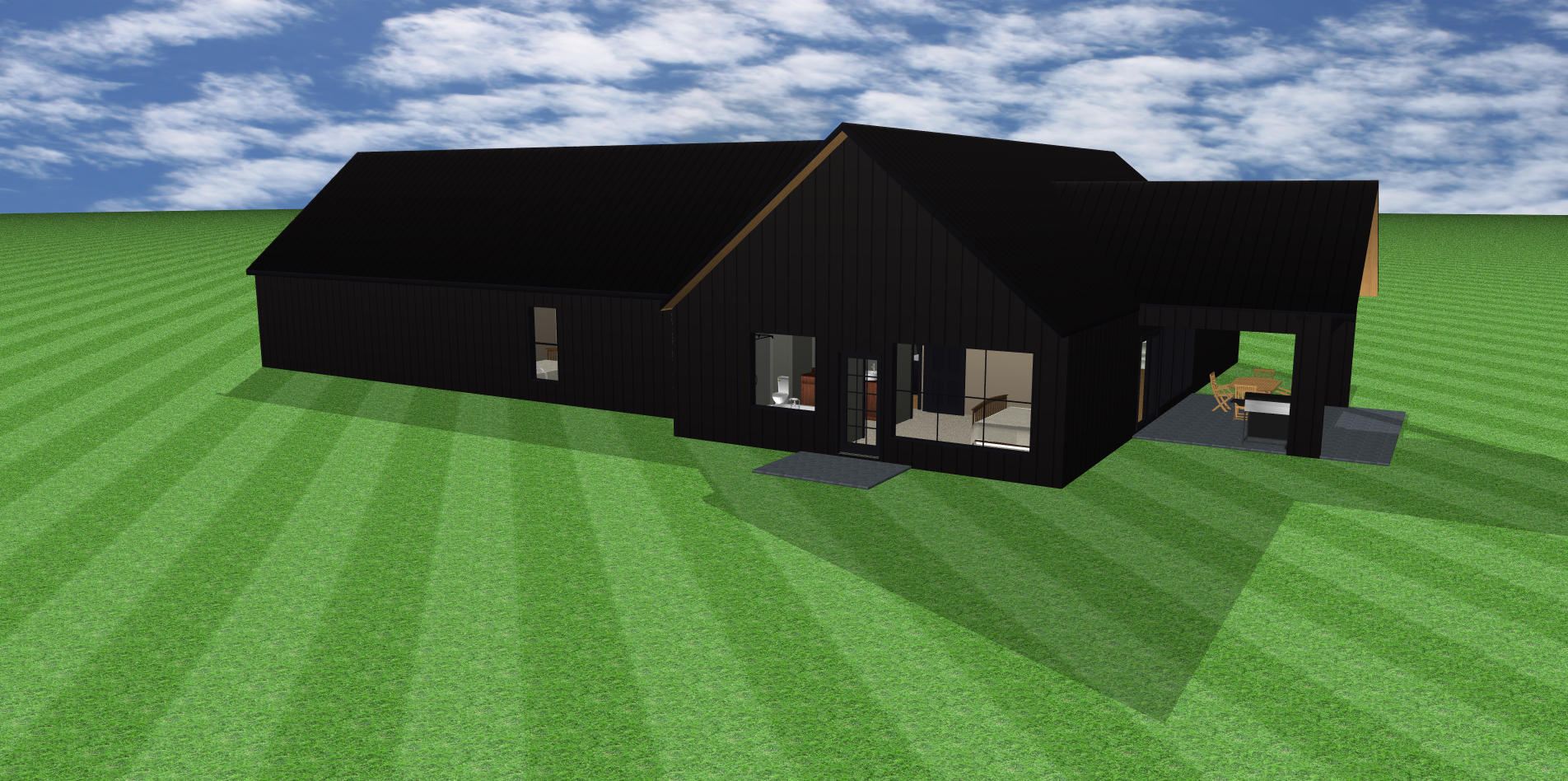

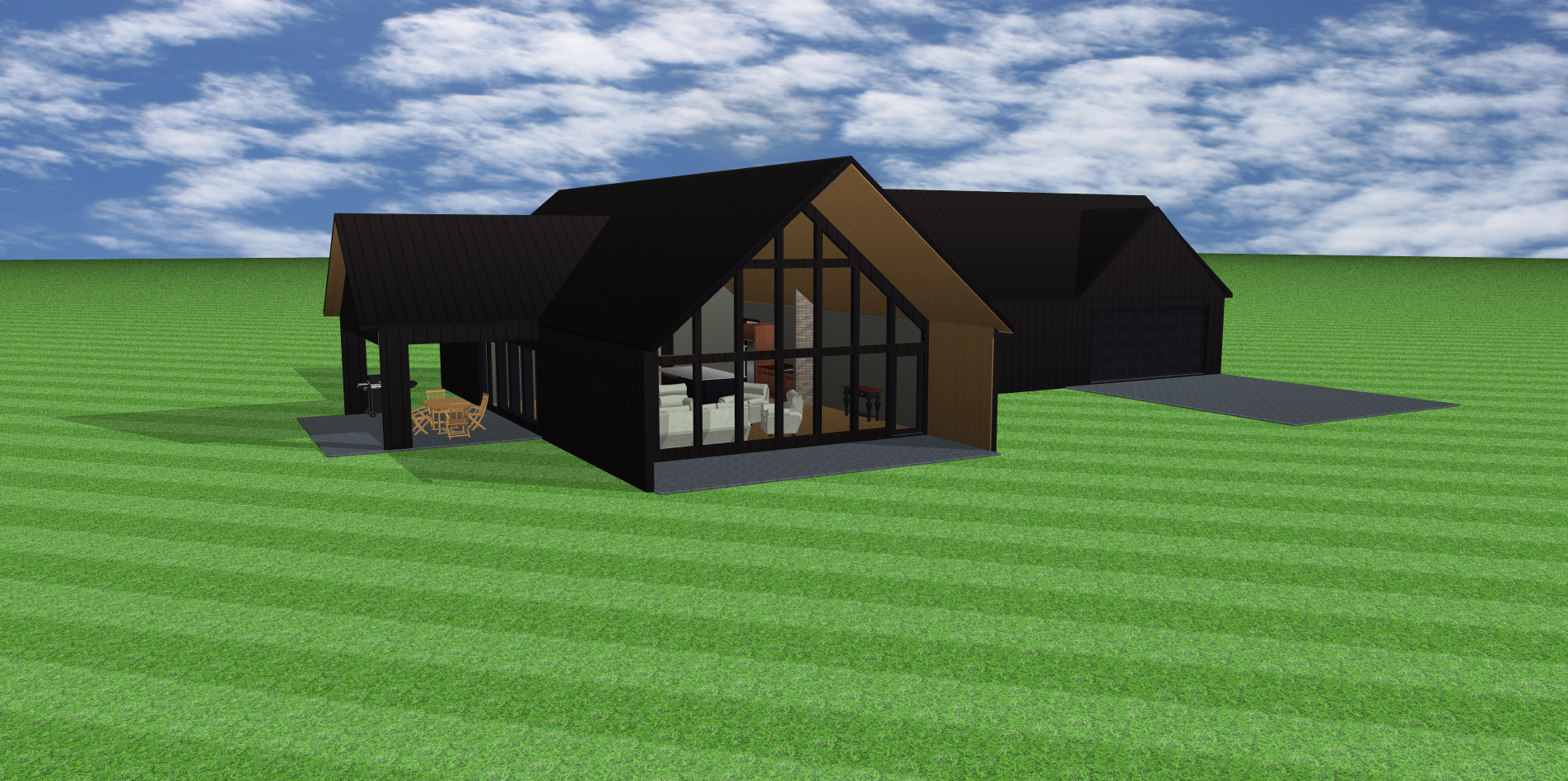

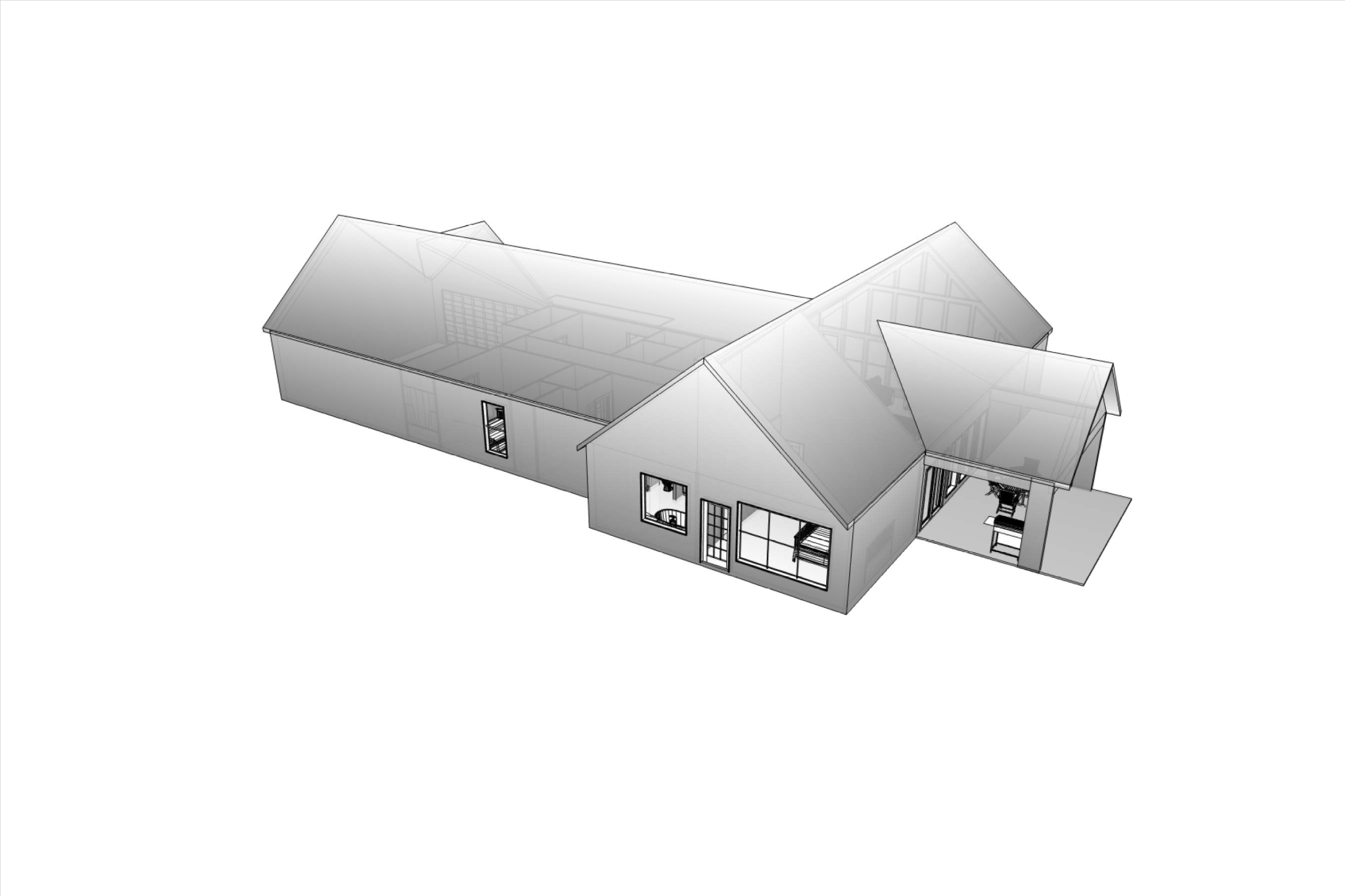

The Wellington Barndominium Plan is a beautiful, spacious home, with an open floor plan and modern styling. Features include full view glass wall at the gable end with vaulted ceilings, spacious front porch, a one car garage, and 2nd story loft.
